LMCK-HA-6 Industrial Electrical Equipment & Power System Sinfonia Vietnam ANSdanang

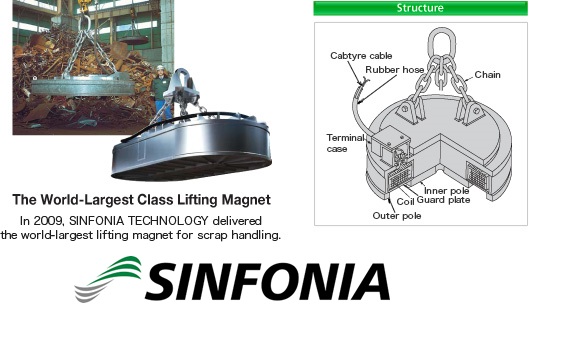

■For normal temperature scrap handling (up to 100℃)
| Type | LMCK- 52HA- 6 |
LMCK- 72HA- 6 |
LMCK- 82HA- 6 |
LMCK- 92HA- 6 |
LMCK- 115HA- 6 |
LMCK- 135HA- 6 |
LMCK- 155HA- 6 |
LMCK- 175HA- 6 |
LMCK- 185HA- 6 |
LMCK- 215HA- 6 |
LMCK- 245HA- 6 |
Rated voltage |
|||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Outline Dimention | Figure A | Figure B | |||||||||||||
| Dimensions | A | mm | 550 | 750 | 850 | 950 | 1150 | 1350 | 1550 | 1750 | 1850 | 2150 | 2450 | ||
| B | 520 | 720 | 820 | 920 | 1150 | 1350 | 1550 | 1750 | 1850 | 2150 | 2450 | ||||
| C | 416 | 413 | 403 | 365 | 386 | 414 | 425 | 462 | 484 | 512 | 542 | ||||
| D | 796 | 824 | 814 | 794 | 1020 | 1190 | 1260 | 1400 | 1420 | 1760 | 2060 | ||||
| E | 19 | 28 | 28 | 28 | 38 | 50 | 50 | 60 | 60 | 80 | 90 | ||||
| F | 120 | 160 | 160 | 160 | 200 | 250 | 250 | 350 | 350 | 400 | 450 | ||||
| G | 65 | 90 | 90 | 90 | 125 | 175 | 175 | 210 | 210 | 250 | 280 | ||||
| Weight (approx.) With hanging chain |
kg | 290 | 570 | 625 | 795 | 1340 | 2090 | 2800 | 3850 | 4500 | 6800 | 9650 | |||
| Hanging capacity and voltage (When cold or hot) Constant voltage system |
Current (when cold) |
A | 10.9 | 15.5 | 21.4 | 23.2 | 31.8 | 56.4 | 65 | 70 | 78.6 | 112.7 | 153.2 | DC220V | |
| Power consumption (when cold) |
kW | 2.4 | 3.4 | 4.7 | 5.1 | 7 | 12.4 | 14.3 | 15.4 | 17.3 | 24.8 | 33.7 | |||
| Falling ball | kg | 1500 | 2500 | 3500 | 4500 | 6500 | 8500 | 11000 | 13000 | 14500 | 20000 | 23000 | |||
| Pig iron | 210 /180 |
400 /340 |
520 /440 |
660 /560 |
1030 /870 |
1640 /1430 |
2160 /1880 |
2750 /2400 |
3080 /2680 |
4160 /3620 |
5400 /4700 |
||||
| Crop end | 210 /180 |
400 /340 |
520 /440 |
660 /560 |
1030 /870 |
1640 /1430 |
2160 /1880 |
2750 /2400 |
3080 /2680 |
4160 /3620 |
5400 /4700 |
||||
| No. 1 H.M.S. | 100 /70 |
200 /150 |
250 /200 |
320 /250 |
545 /460 |
870 /735 |
1220 /1055 |
1590 /1360 |
2140 /1740 |
2890 /2350 |
3745 /3045 |
||||
| No. 2 H.M.S. | - | - | - | 100 /60 |
200 /100 |
300 /200 |
450 /300 |
600 /400 |
650 /450 |
1000 /700 |
1500 /1000 |
||||
| Cast iron grinding dust |
65 /55 |
200 /150 |
250 /200 |
320 /250 |
545 /460 |
870 /735 |
1220 /1055 |
1590 /1360 |
2140 /1740 |
2890 /2350 |
3745 /3045 |
||||
| Components | Cable connector | H-230E | H5-260E | PJW-102 | PJW-202 | AC200 /220V When receiving power |
|||||||||
| Cable drum (For 15m) |
CSN-11WR | U5-C1502G1 | U5- E1502G2 |
U5- E1502G3 |
|||||||||||
| Attached cabtire cable |
5.5mm2, 2 hearts 13m×1 |
14mm2, 2 hearts 20m×1 |
22mm2, 2 hearts 20m×1 |
38mm2, 2 hearts 20m×1 |
|||||||||||
| Power panel | LMP-72A-D | LMP- 192A-D | LMP- 194A-D | LMP- 254A-D | LMP- 454A-D | ||||||||||
| Power receiving box |
NFI-05SW | NFI-1SW | NFI-2SW | NFI-4SW | |||||||||||
| Inverter | 10kVA | 19kVA | 45kVA | 60kVA | 105kVA | ||||||||||
| Instrument casing |
MPB-211-5C | MPB- 211- 15C |
MPBS- 2111-15D | MPBS- 2111- 20G |
MPBS- 2111- 35G |
||||||||||
| When using controller |
MCS-2 | ||||||||||||||
| When using two-points push button |
KGN2112NY | ||||||||||||||
| When using eight-points push button |
COB-74 | ||||||||||||||
Crop end: Grinding dust of ingot, billet blooms
No.1 H.M.S: Grinding dust of thick blooms (Thickness:over 6mm, width:less than 600mm, length:less than 1500mm)
No.2 H.M.S: Dust（thickness:over 3mm, wideth: less than 450mm, length: less than 900mm）include steel plate, shaped steel and car scrap.
Note)
- Ability might differ when you use LMP-192-D in area of 50Hz, hanging voltage will be DC270V.
- Hanging capacity increase 10% when starting up over shoot DC350V or 490V, and hanging over excitation DC290V (DC200V while lifting).
- Measurement C of LMCK-175～245HA-6 is included measurement of protector.
- Type of cab tire cable is 2PNCT (5.5mm2), and PNCT for lifting magnet (14～38mm2).
- Hanging capacity might change depend on shape, dimensions, and state of compile of handling scrap. Therefore, hanging capacity is not reference.
